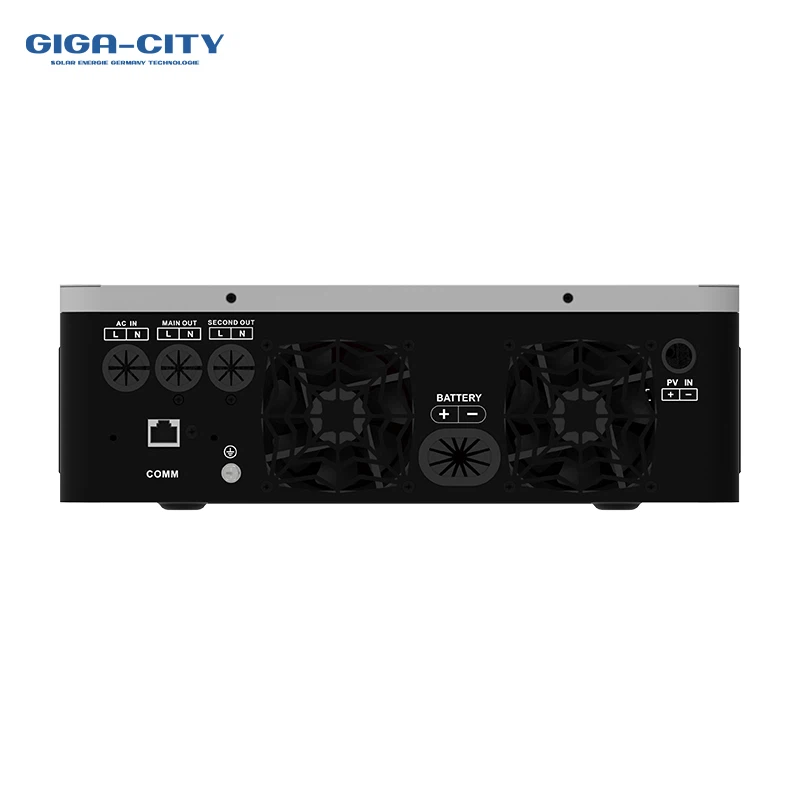

Lub 3.6kw 24v Hybrid Inverter yog ib qho khoom siv siab heev uas tso cai rau kev sib koom ua ke ntawm cov khoom siv hluav taws xob txuas ntxiv xws li hnub ci, cua, thiab hydropower rau hauv koj lub tsev lossis kev lag luam. Lub inverter muaj peev xwm hloov cov tam sim no ncaj qha (DC) uas tsim los ntawm cov chaw no rau hauv alternating tam sim no (AC) uas tsim nyog siv los ntawm cov khoom siv hluav taws xob nyob ib puag ncig koj.
Lub inverter no yog tsim los nrog kev ua haujlwm hybrid uas tso cai rau nws kos thiab hloov ntawm PV thiab AC inputs. Nws tuaj yeem them koj cov roj teeb siv ob qho tib si DC thiab AC lub zog hluav taws xob, kom ntseeg tau tias koj muaj lub zog txuas ntxiv thaum muaj hluav taws xob. Lub 24V DC input tso cai rau kev teeb tsa yooj yim ntawm cov roj teeb thiab them cov roj teeb kom zoo.
Qhov no hybrid inverter zoo meej rau kev siv ntau yam kev siv, suav nrog tsev, chaw ua haujlwm, thiab kev lag luam me. Nrog nws cov yam ntxwv siab heev, nws ua kom ntseeg tau tias koj cov kev xav tau hluav taws xob tau txais txiaj ntsig zoo thaum txo tus nqi hluav taws xob. Tsis tas li ntawd, lub inverter lub compact tsim ua rau nws yooj yim rau nruab thiab integrate rau hauv koj cov hluav taws xob system.
Thaum muas Hybrid Inverter, nws yog ib qho tseem ceeb kom ntseeg tau tias koj tau txais cov khoom zoo los ntawm cov chaw tsim khoom muaj koob npe. Raws li cov chaw tsim khoom ntawm Hybrid Inverters, peb lub Hoobkas ua kom cov qauv zoo tshaj plaws hauv kev tsim, tsim khoom, thiab muab khoom ntawm nws cov khoom. Peb cov neeg siv khoom txaus siab rau qhov zoo ntawm peb cov khoom, thiab peb txaus siab rau peb tus kheej kom ntseeg tau tias lawv tau txais txiaj ntsig rau lawv cov peev txheej.
Hauv kev xaus, 3.6kw 24v Hybrid Inverter yog ib qho kev txhim khu kev qha thiab muaj txiaj ntsig zoo rau kev sib txuas cov khoom siv hluav taws xob txuas ntxiv mus rau hauv koj cov hluav taws xob. Nws cov yam ntxwv ua rau nws zoo tagnrho rau kev siv ntau yam kev siv, thiab nws lav lub zog txuas ntxiv. Yog tias koj tab tom nrhiav rau tus nqi pheej yig thiab zoo hybrid inverter, peb lub Hoobkas yuav tsum yog koj xaiv.
Nta
● Ntshiab sine yoj hnub ci inverter (on/off Grid)
● WIFI & GPRS muaj rau IOS thiab Android
● Inverter khiav tsis muaj roj teeb
● Ib qho tseem ceeb kho dua tshiab rau lub Hoobkas teeb tsa
● Ua-hauv lithium roj teeb tsis siv neeg ua haujlwm
● Ua-hauv 120A (rau 3.6KW / 6.2KW) 140A (rau 7.2KW)
● MPPT: max 6200W (rau 3.6KW), max 6500W (rau 6.2KW) max 7500W (rau 7.2KW) hnub ci nqi
● High PV input voltage ntau (90 ~ 450VDC)
● Built-in los tiv thaiv kev tsaus ntuj rau ib puag ncig hnyav
● Smart roj teeb them tsim los ua kom zoo dua roj teeb lub neej
● Dual tso zis
|
Qauv |
MPS-VIIIECO 3.6 KW |
MPS-VIIIECO 6.2 KW |
MPS-VIIIECO 7.2 KW |
|
Theem |
|
1-phase |
|
|
MaximumPVInputPower |
6200W |
6500W |
7500W |
|
|
3600W / 3600VA |
6200W / 6200VA |
7200W / 7200VA |
|
MaximumSolarChargingCurrent |
120A |
120A |
140A |
|
GRID-TIEOPERATION |
|
|
|
|
Cov tswv yim (DC) |
|||
|
NominalVoltage/MaximumVoltage |
360VDC / 500VDC |
||
|
Pib-upVoltage/InitialFeedingVoltage |
|
90VDC / 120VDC |
|
|
Qhov siab tshaj plaws |
90VDC ~ 450VDC |
|
|
|
NumberMPPTTrachers/MaximumInputCurrent |
|
1/27A |
|
|
OUTPUT (AC) |
|
||
|
|
|
200/230/240VAC |
|
|
|
|
195.5 ~ 253VAC |
|
|
NominalOutputCurrent |
15.7A |
27A |
31.3A |
|
PowerFactor |
|
>0.99 |
|
|
Ntau zaus |
|
49 ~ 51 ± 1Hz |
|
|
Kev ua tau zoo |
|
||
|
MaximumConversionEfficiency(Solar/AC) |
|
98% |
|
|
TWOLOADOUTPUTPOWER(V2.0) |
|
|
|
|
FullLoad |
3600W |
6200W |
7200W |
|
MaximumMainLoad |
3600W |
6200W |
7200W |
|
MaximumLoad(Battery |
1200W |
2067W |
2400W |
|
MainLoadVoltage |
22 VDC |
44 VDC |
44 VDC |
|
MainLoadReturnVoltage |
26 VDC |
52vdc ua |
52vdc ua |
|
OFF-GRIDOPERATION |
|
|
|
|
ACINPUT |
|||
|
ACStart-upVoltage/AutoRestartVoltage |
120-140VAC/180VAC |
||
|
Txais tauInputVoltageRange |
|
90-280VACor170-280VAC |
|
|
|
30A |
40A |
40A |
|
|
|
50/60Hz |
|
|
SurgePower |
7200W |
12400W |
14400W |
|
BATTERYMODEOUTPUT (AC) |
|
|
|
|
NominalOutputVoltage |
|
220/230/240VAC |
|
|
Wavefrom |
Puresinewave |
||
|
Efficiency (DC |
|
94% |
|
|
Roj teeb & CHARGER |
|
|
|
|
NominalVoltage |
24 VDC |
48 VDC |
48 VDC |
|
MaximumSolarChargingCurrent (SolartoAC) |
120A |
120A |
140A |
|
MaximumCharging |
100A |
100A |
100A |
|
PHEM |
|
|
|
|
Dimension, D |
|
110*334*423 |
|
|
Qhov hnyav (kgs) |
9 |
10 |
11 |
|
INTERFACE |
|
|
|
|
CommunicationPort |
|
RS232/GPRS/WIFI |
|
|
Ib puag ncig |
|
||
|
Kev Ua Haujlwm Kub |
-10 degree rau 55 degree |
||
FAQ
1. Lub hnub ci hybrid inverter yog dab tsi?
Lub hnub ci hybrid inverter yog ib qho tshwj xeeb inverter uas sib txuas cov kev ua haujlwm ntawm lub hnub ci nqi tswj, inverter, thiab roj teeb charger hauv ib chav tsev. Nws yog tsim los siv nrog cov hnub ci vaj huam sib luag thiab cov roj teeb thaub qab kom ntseeg tau cov khoom siv hluav taws xob tas mus li thaum muaj hluav taws xob poob.
2. Lub hnub ci hybrid inverter ua haujlwm li cas?
Lub hnub ci hybrid inverter ua haujlwm raws li hauv qab no: Lub hnub ci vaj huam sib luag hloov lub hnub ci rau hauv DC hluav taws xob, uas yog xa mus rau lub inverter. Lub inverter hloov cov hluav taws xob DC rau hauv AC hluav taws xob uas tuaj yeem siv rau lub teeb hluav taws xob thiab cov khoom siv hauv tsev. Lub zog tshaj yog khaws cia rau hauv lub roj teeb rau lub zog thaub qab. Thaum tsis muaj hnub ci, lub zog khaws cia hauv lub roj teeb yog siv los ua lub zog hauv tsev.
3. Dab tsi yog qhov txiaj ntsig ntawm kev siv lub hnub ci hybrid inverter?
Cov txiaj ntsig ntawm kev siv lub hnub ci hybrid inverter suav nrog cov nqi hluav taws xob qis, kev ywj pheej los ntawm daim phiaj hluav taws xob tseem ceeb, tsis muaj kev cuam tshuam lub zog thaum lub zog hluav taws xob, txo cov pa roj carbon monoxide, thiab nce nqi tsev.
4. Dab tsi yog qhov kev ntsuas kev ua haujlwm ntawm lub hnub ci hybrid inverter?
Hnub ci hybrid inverters feem ntau muaj qhov ua tau zoo ntawm 90 - 95%, txhais tau tias lawv tuaj yeem hloov lub hnub ci zog rau hluav taws xob zoo.
5. Lub hnub ci hybrid inverter puas tuaj yeem ntsia tau rau hauv ib lub tsev?
Yog lawm, lub hnub ci hybrid inverter tuaj yeem ntsia tau rau hauv txhua lub tsev ntev npaum li lub ru tsev tsim nyog rau kev teeb tsa lub hnub ci, thiab muaj qhov chaw txaus rau cov roj teeb thaub qab.
